After the success of our first & second generation surge tanks, we have updated the design even further with more features and a better overall finish.
Check out some of the features below...
TAARKS "ST" series of surge tanks have been designed to meet the demands of performance vehicles from around the world! For this reason we have design protected the special features of our tanks (Design Number: 201412624)
Designed to suit the Deatschwerks Brushless 810 LPH fuel pumps.
Our unique round design with machined top and bottom plates eliminates ANY trapped air pockets, unlike square tanks.
Now a 3 piece design means no more welds, allowing for a much nicer overall finish.
**100% E85 Compatible.
Features:
Machined from billet 6061-T6 aluminum
Insulated pumps to protect against vibration and reduce noise
Anodised gloss black to support Ethanol fuels and protect against corrosion
Stainless Steel hose clamps & Teflon submersible fuel hose
Unique electrical connectors with teflon insulators and o-ring seals to prevent leaks
All stainless steel nuts, bolts and washers.
Laser etched top plate
Colour rubber boots for electrical terminals
Viton o-rings used throughout
Fuel strainers to protect the pumps (when pumps are supplied)
Capacity: 3L
Tank dimensions are:
Diameter = 157mm
Height = 218mm (not including the fittings)
Mounting Holes PCD = 180mm
Fittings:
Pump has AN6 (-6) outlet (AN6 ORB to AN8 Male Fitting Included)
The other 3 ports are all AN8 (-8)
The fittings are all ORB (o-ring sealed) fittings.
Fittings:
Pump has AN6 (-6) outlet (AN6 ORB to AN8 Male Fitting Included)
The other 3 ports are all AN8 (-8)
The fittings are all ORB (o-ring sealed) fittings.

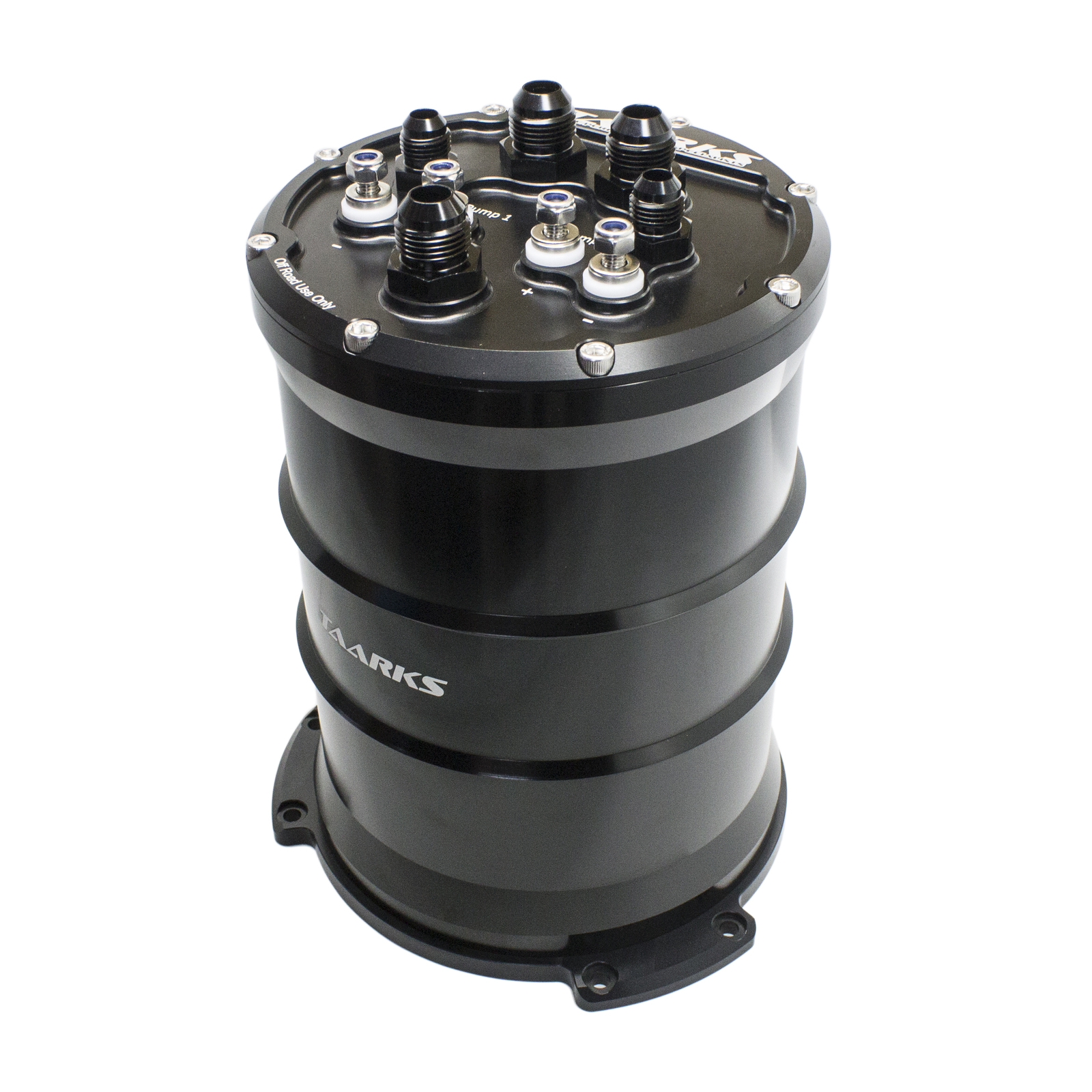

Fuel Surge Tank (v3) "Deatschwerks 810lph Brushless E85"
SKU: 407-051-P
BRAND: TAARKS
AU$491.01
Incl. GST
Fuel Surge Tank (v3) "Deatschwerks 810lph Brushless E85"
AU$491.01
Incl. GST
Sold Out
After the success of our first & second generation surge tanks, we have updated the design even further with more features and a better overall finish.
Check out some of the features below...
TAARKS "ST" series of surge tanks have been designed to meet the demands of performance vehicles from around the world! For this reason we have design protected the special features of our tanks (Design Number: 201412624)
Designed to suit the Deatschwerks Brushless 810 LPH fuel pumps.
Our unique round design with machined top and bottom plates eliminates ANY trapped air pockets, unlike square tanks.
Now a 3 piece design means no more welds, allowing for a much nicer overall finish.
**100% E85 Compatible.
Features:
Machined from billet 6061-T6 aluminum
Insulated pumps to protect against vibration and reduce noise
Anodised gloss black to support Ethanol fuels and protect against corrosion
Stainless Steel hose clamps & Teflon submersible fuel hose
Unique electrical connectors with teflon insulators and o-ring seals to prevent leaks
All stainless steel nuts, bolts and washers.
Laser etched top plate
Colour rubber boots for electrical terminals
Viton o-rings used throughout
Fuel strainers to protect the pumps (when pumps are supplied)
Capacity: 3L
Tank dimensions are:
Diameter = 157mm
Height = 218mm (not including the fittings)
Mounting Holes PCD = 180mm
Fittings:
Pump has AN6 (-6) outlet (AN6 ORB to AN8 Male Fitting Included)
The other 3 ports are all AN8 (-8)
The fittings are all ORB (o-ring sealed) fittings.
Fittings:
Pump has AN6 (-6) outlet (AN6 ORB to AN8 Male Fitting Included)
The other 3 ports are all AN8 (-8)
The fittings are all ORB (o-ring sealed) fittings.
| SKU | 407-051-P |
| Brand | TAARKS |
| Shipping Weight | 2.8190kg | MPN: | 600020-DW |
