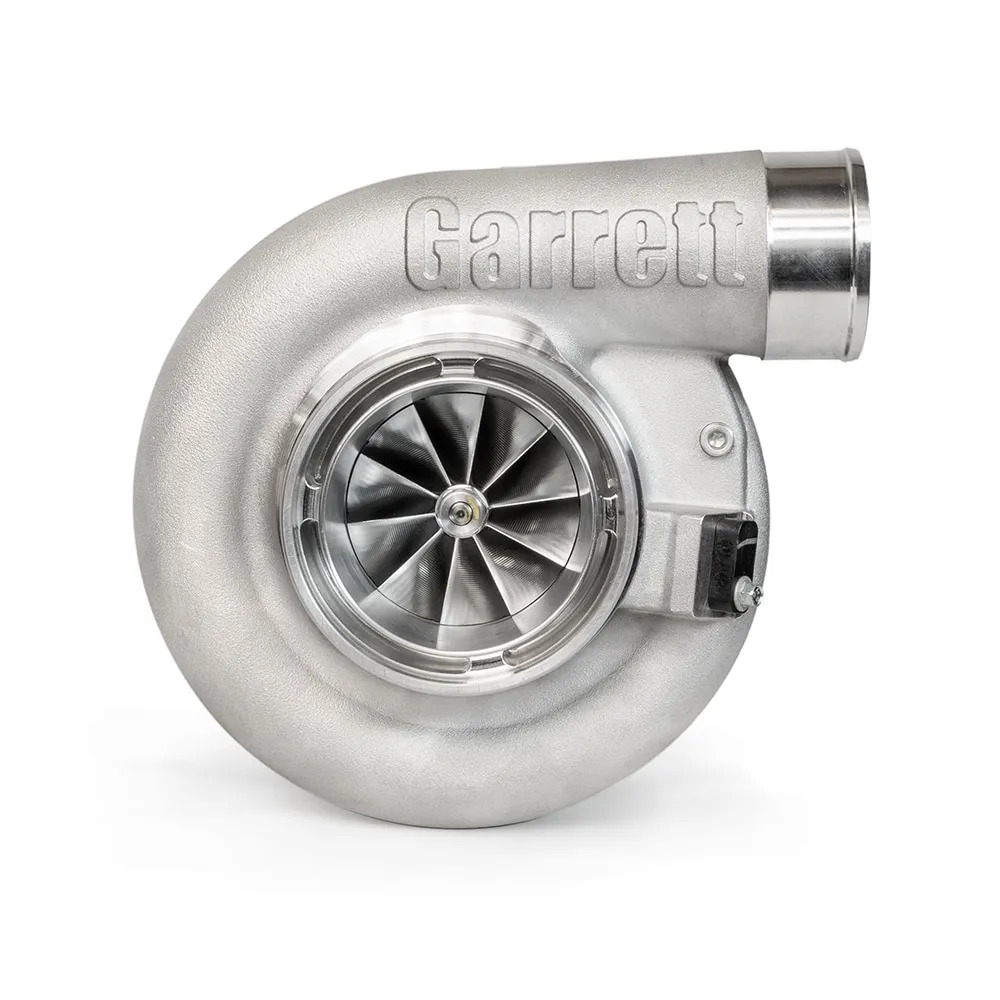

Garrett G40-1150 With 0.95 A/R V-Band IN / V-Band Out Turbine Housing :

• G Series compressor aero increases flow up to 32% (compared to GTX4088R)
• 62mm and 71mm compressor inducer sizes
• Dual ceramic ball bearing with steel cages
• G Series turbine aero increases flow 16% (compared to GTX4088R)
• Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with super core
• Stainless steel turbine housings available with T4 twin scroll inlet and V-band Inlet
• T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models

New compressor and turbine aero combined with high temperature resistant materials allowed engineers to push the limits of performance.

A new name designates a new generation of industry leading technology and innovation.

FURTHER INFORMATION CAN BE FOUND AT GARRETT MOTION https://www.garrettmotion.com/racing-and-performance/performance-catalog/turbo/g-series-G40-1150-71mm/
