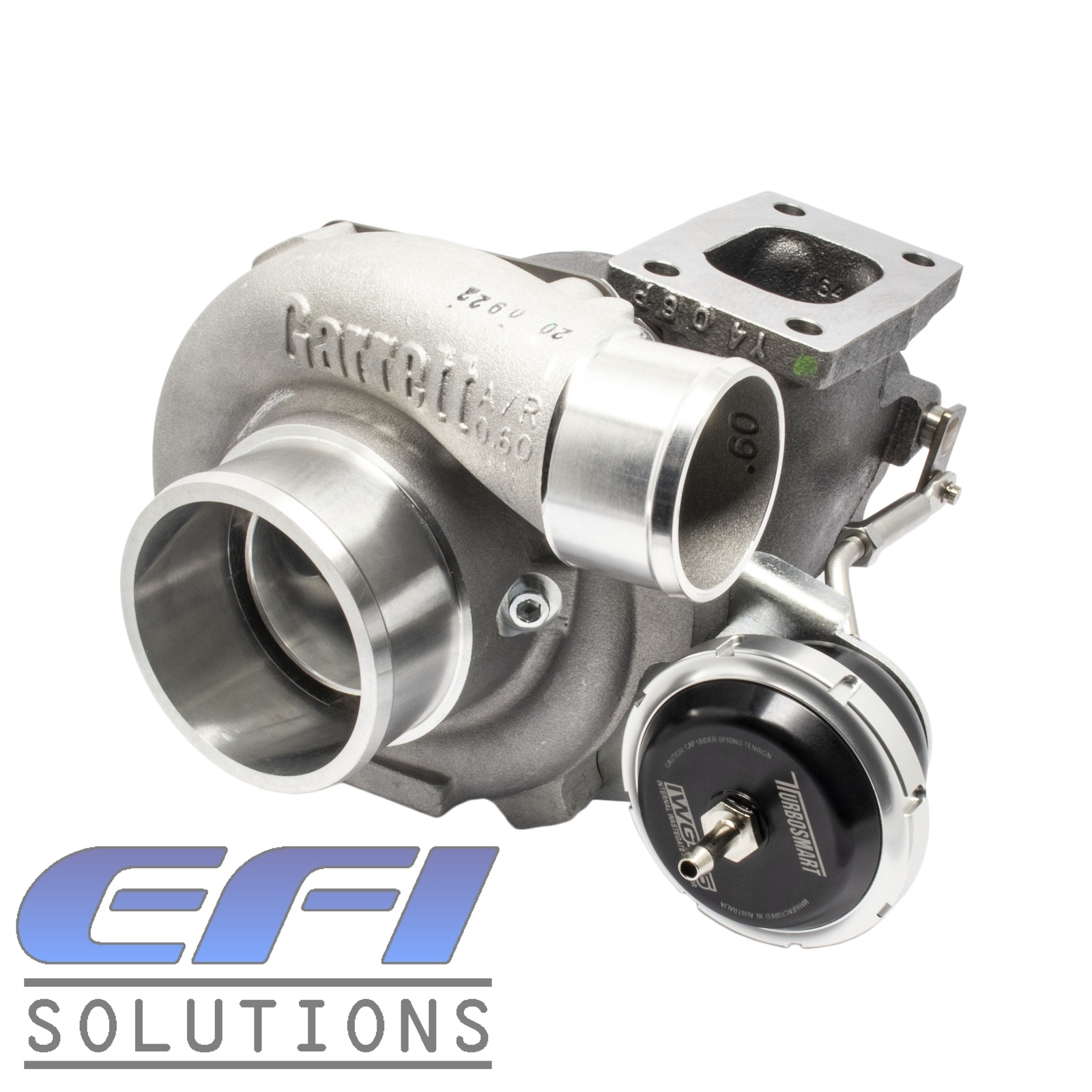

This turbo housing will need to be clocked/Orientated before installing onto the factory CA18 and SR20 Turbo Exhaust Manifold. Custom Intercooler pipework will be needed as the compressor housing does not have the 3 bolt outlet.

Supplied with Rear 0.64 Housing and your choice of actuator

Features:

  • Increased Horsepower Range
  • Fully Machined Speed Sensor Port
  • Improved Surge Resistant Ported Shroud Design
  • Lightweight Billet Back Plate
  • New Compressor Housing Aesthetics

Specifications:

  • Approximate Horsepower Range for Engine Capacity: 275 - 550Hp (1.4 - 2.5L)
  • Compressor Wheel Inducer Size (mm): 50
  • Compressor Wheel Exducer Size (mm): 67
  • Compressor Wheel Trim (mm): 55
  • Turbine Wheel Inducer Size (mm): 54
  • Turbine Wheel Exducer Size (mm): 47
  • Turbine Wheel Trim: 76
  • Wastegate: Wastegated
SKU 215-135-P
Brand Garrett
Shipping Weight 20.0000kg
MPN: 856800-5007S
