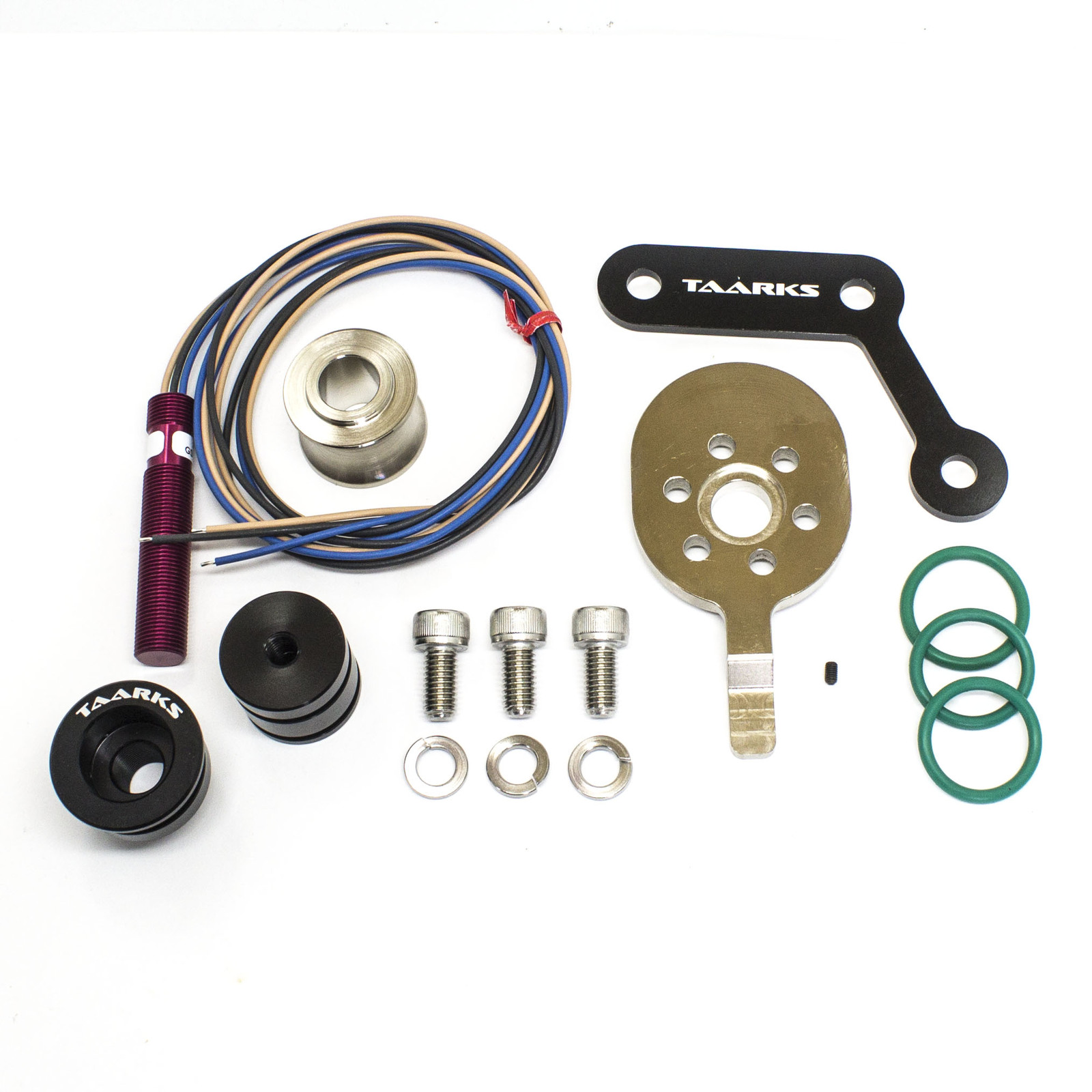

This kit will bolt onto the front of the SR20 exhaust camshaft and provide the ECU with a home / sync signal Only. Great for use with a crank trigger kit like our kit desined to run with the ATI balancers.
We utilise the ZF / Cherry red sensors as they are a proven unit and work extemely well. The trigger plate is CAD balanced to ensure no additiaonal vibration is added to the valve train.
Features:
- Nickel Coated Trigger Plate
- ZF / Cherry Red Sensor
- No drilling or modification of the head
- Can be installed onto a complete engine
- 6 dowel locations allows different sync locations
- Includes a blanking plate for the OEM CAS / Distributor
Application:
S13 Silvia (SR20)
RPS13 180sx (SR20)
S14 Silvia 200sx
S15 Silvia 200sx
**This kit was testing using standard and tomei cam gears, if you have something other than these you will need to check the adjustment bolts do not protrude past the front section of the cam gear. If they do you will need to replace 2 of the bolts with a low profile head, or machine the existing ones down.
Hall Sensor Camshaft Home / Sync (SR20) "S13, 180sx, S14, S15"
SKU: 403-032
BRAND: TAARKS
This kit will bolt onto the front of the SR20 exhaust camshaft and provide the ECU with a home / sync signal Only. Great for use with a crank trigger kit like our kit desined to run with the ATI balancers.
We utilise the ZF / Cherry red sensors as they are a proven unit and work extemely well. The trigger plate is CAD balanced to ensure no additiaonal vibration is added to the valve train.
Features:
- Nickel Coated Trigger Plate
- ZF / Cherry Red Sensor
- No drilling or modification of the head
- Can be installed onto a complete engine
- 6 dowel locations allows different sync locations
- Includes a blanking plate for the OEM CAS / Distributor
Application:
S13 Silvia (SR20)
RPS13 180sx (SR20)
S14 Silvia 200sx
S15 Silvia 200sx
**This kit was testing using standard and tomei cam gears, if you have something other than these you will need to check the adjustment bolts do not protrude past the front section of the cam gear. If they do you will need to replace 2 of the bolts with a low profile head, or machine the existing ones down.
| SKU | 403-032 |
| Brand | TAARKS |
| Shipping Weight | 0.3500kg | MPN: | 200032 |
Hall Sensor Camshaft/Sync (Sr20)
By: Ron Freitas on 19 December 2023Just what i needed with my FuelTech FT550 ,already had the Mazworx sr20det ATI Damper and needed this simple yet awesome cam sensor to run Sequential ignition and Injection, Awesome Product ,impressive quality and the price is unbeatable, Thank you works perfect.
(5)
Trigger errors be gone
By: Fernando Chhean on 22 March 2021Decided to purchase this, not because it was necessarily needed, but nice to have on an SR. The kit was great quality everything pretty much just bolted on. Car has been tuned since and there was no trigger errors as expected.
(5)
By: Hakan Kopra on 13 March 2019
(5)
