Genuine Nissan heater and coolant hoses.

Use the diagrams above to locate the required hoses, fill the QTY's to the right to order the required hoses.

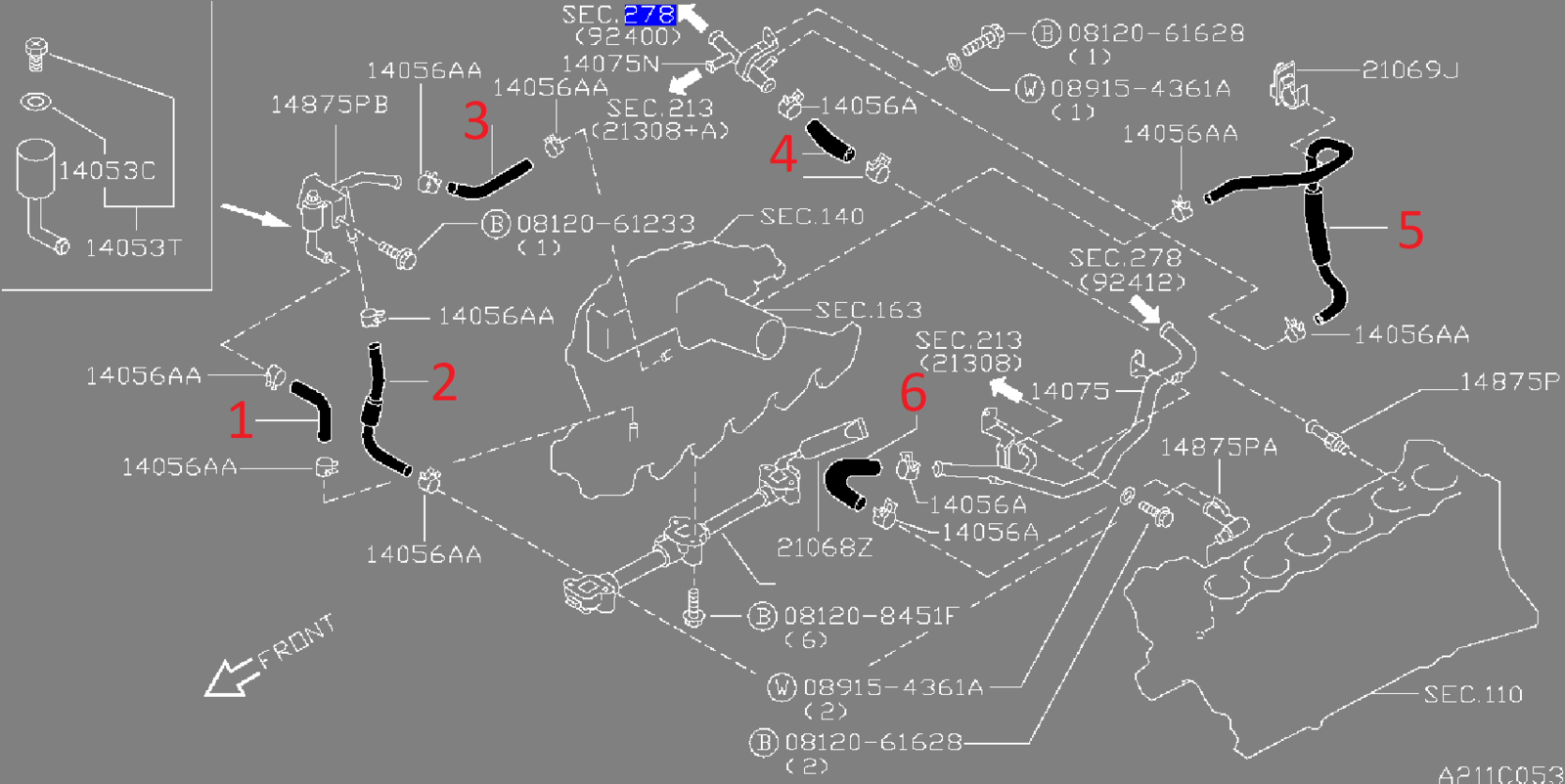

Diagram 1
Hose 1 - Connects Intake Plenum to the Bottom of the Bleed Point "Years: 08/1993 - 03/1994"
Hose 1a - Connects Intake Plenum to the Bottom of the Bleed Point "Years: 03/1994 - onwards"
Hose 2 - Connects the Bleed Point to the Side of the Block
Hose 3 - Connects the Top of the Bleed Point to the Under Side of the Plenum
Hose 4 - Connects the Metal "4 way" Piece at the Back of the Back of the Block
Hose 5 - Connects the Metal "4 way" Piece to the Plenum "Years: 08/1993 - 02/1997 (Manual & Auto)"
Hose 5 - Connects the Metal "4 way" Piece to the Plenum "Years: 02/1997 - onwards (Manual Only)"
Hose 5a - Connects the Metal "4 way" Piece to the Plenum "Years: 02/1997 - onwards (Auto Only)"
Hose 6 - Connects the Metal Pipe under the Plenum to the Side of the Block

Diagram 2
Hose 7 - Connects Turbo Water Hardline to Rear of Intake Runner

Diagram 3
Hose 8 - Oil Cooler Hose Upper
Hose 9 - Oil Cooler Hose Lower

Diagram 4
Hose 10 - Top Heater Hose from Engine to Firewall Joiner "Years: 08/1993 - 03/1997 (Manual & Auto)"
Hose 10 - Top Heater Hose from Engine to Firewall Joiner "Years: 03/1997 - onwards (Manual Only)"
Hose 10a - Top Heater Hose from Engine to Firewall Joiner "Years: 03/1997 - onwards (Auto Only)"
Hose 11 - Bottom Heater Hose from Engine to Firewall Joiner "Years: 08/1993 - 03/1997 (Manual & Auto)"
Hose 11 - Bottom Heater Hose from Engine to Firewall Joiner "Years: 03/1997 - onwards (Manual Only)"
Hose 11a - Bottom Heater Hose from Engine to Firewall Joiner "Years: 03/1997 - onwards (Auto Only)"
Hose 12 - Top Heater Hose from Firewall Joiner to Heater Core
Hose 13 - Bottom Heater Hose from Firewall Joiner to Heater Core "Years: 08/1993 - 09/1996"
Hose 13a - Bottom Heater Hose from Firewall Joiner to Heater Core "Years: 09/1996 - onward"

Application:
R33 Skyline RB25DET
