Genuine Nissan R33/R34 Skyline GTR, AWC34 - Stagea RB26 heater and coolant hoses.

Please see the diagrams above to select the required hoses.

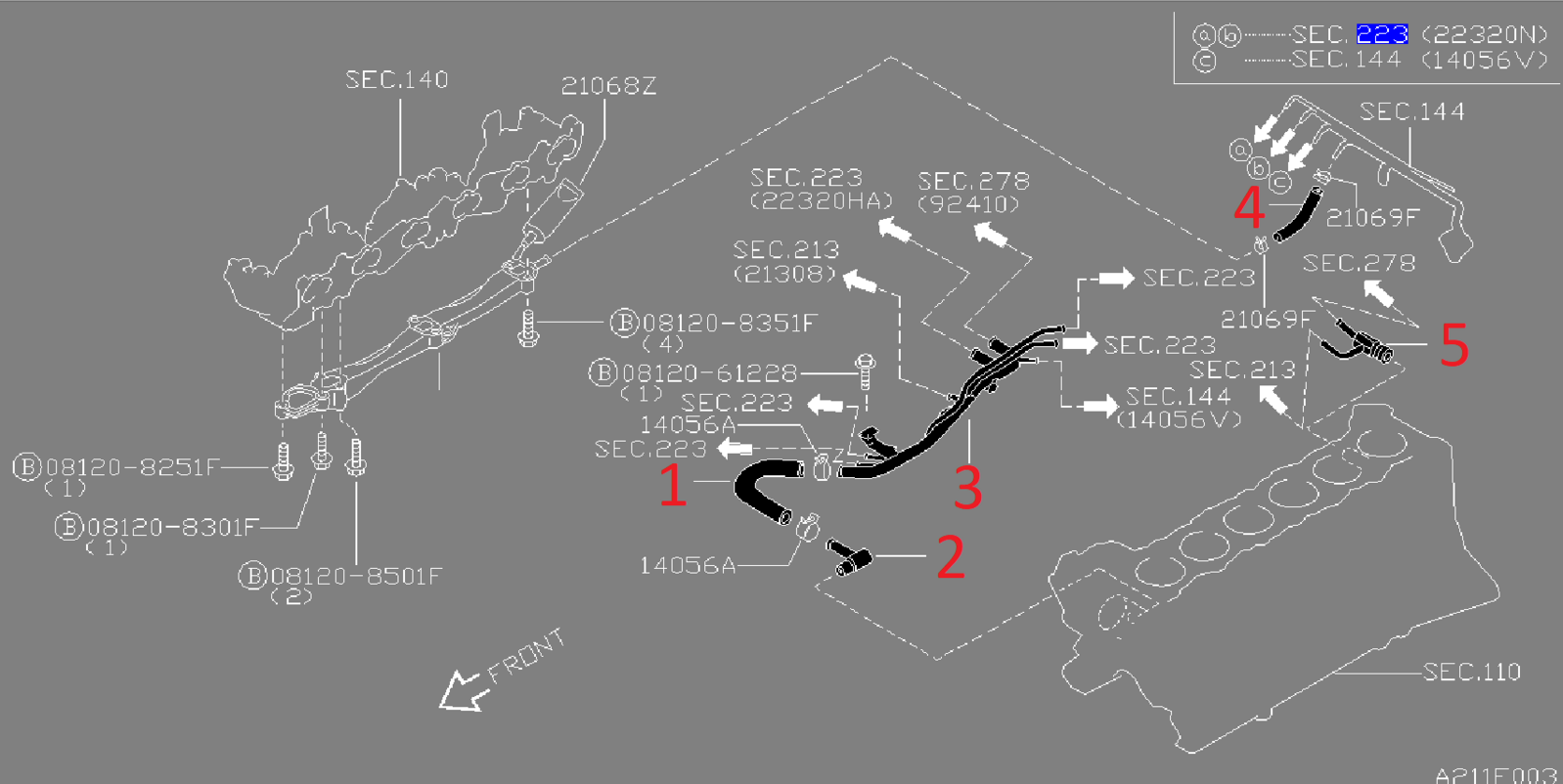

Diagram 1

• 1 - Rubber Hose Front of Block to Metal Pipe Under Intake
• 2 - Metal Pipe / Spigot Pressed into Front of Block
• 3 - Metal Pipe Under Intake
• 4 - Rubber Hose from Aluminium Block Under Intake to Metal Pipe at Rear of Block
• 5 - Metal Pipe / Spigot Threaded into Rear of Block

Diagram 2

• 6 - Rubber Hose from Radiator Outlet Pipe to Metal Crossover Pipe (Nismo Heritage Product)
• 7 - Metal Crossover Pipe at Front of Head
• 8 - Rubber Hose from Metal Crossover Pipe to Metal Turbo Water Pipe
• 9 - Rubber Hose from Metal Pipe at Rear of Block to Metal Pipe Under Intake

Diagram 3

• 10 - Rubber Heater Hose from Engine to Joiner Pipe on Firewall
• 11 - Rubber Heater Hose from Engine to Joiner Pipe on Firewall
• 12 - Rubber Heater Hose from Joiner Pipe on Firewall to Firewall
• 13 - Rubber Heater Hose from Joiner Pipe on Firewall to Firewall
• 14 - Metal Joiner Pipe Mounted on Firewall

Diagram 4

• 15 - Oil Cooler to Metal Pipe Under Intake
• 16 - Oil Cooler to Metal Pipe Under Intake

Application:
R33 Skyline GTR "RB26DETT"
R34 Skyline GTR "RB26DETT"
AWC34 Stagea "RB26DETT"
