JE Piston Kit suit RB26DETT with 86.5mm Bore.
- Rings Included
- 8.5 Compression Ratio with 0.048" Thickness Head Gasket
Specs:
|
Bore (in) |
3.41 |
|
Bore (mm) |
86.50 |
|
Top Compression Ring Thickness (4070) |
0.0480 |
|
Second Compression Ring Thickness (4071) |
0.0600 |
|
Oil Ring Thickness (4072) |
0.119 |
|
Forging Type |
Round |
|
Volume (cc) |
0.00 |
|
Series |
JE Pistons |
|
Piston Head Type |
Dome |
|
Pin Diameter (IN) |
0.827 |
|
Compression Height |
1.185 |
|
Make |
NISSAN |
|
Wrist Pin Style - floating or press fit |
Floating |
|
Wall Type |
CHAMFERED |
|
Wall Thickness (IN) |
0.150 |
|
Ringset Part Number |
JC2104-3406 |
|
Ring Brand |
ProSeal |
|
Ringset Included |
Yes |
|
Retainer Thickness |
0.063 |
|
Retainer Lock Style |
Wire Lock |
|
Retainer Lock Part Number |
827-063-MW |
|
Retainer Diameter (IN) |
0.827 |
|
Replacement Single Piston |
209849S |
|
Piston Pin Inside Diameter |
0.527 |
|
Piston Pin Material |
5115 LOW CARBON STEEL, CASE HARDENED |
|
Piston Material |
2618 |
|
Piston Pin Length (IN) |
2.250 |
|
Piston Avg Wt |
355 |
|
Pin Offset |
No |
|
Pin Brand |
JE Pistons |
|
Pin Part Number |
827-2250-15-51C |
|
Pin Included |
Yes |
|
Pin Diameter (mm) |
21.00 |
|
Oil Rail Support Included |
No |
|
Deck Clearance |
0.000 |
|
Brand |
JE Pistons |

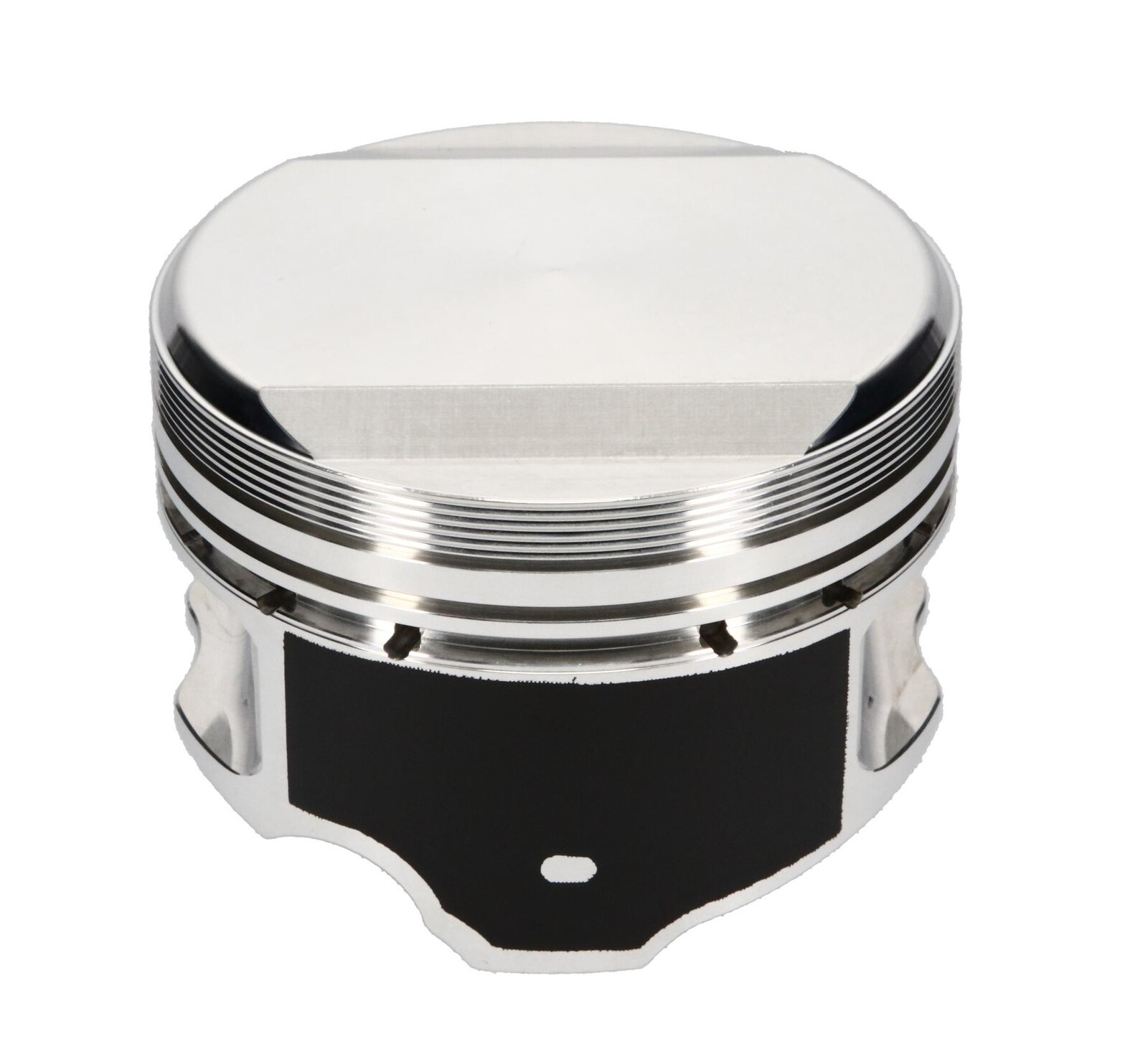

JE Forged Piston Kit RB26DETT 86.5mm Bore
SKU: 205-253
BRAND: JE Pistons
JE Piston Kit suit RB26DETT with 86.5mm Bore.
- Rings Included
- 8.5 Compression Ratio with 0.048" Thickness Head Gasket
Specs:
|
Bore (in) |
3.41 |
|
Bore (mm) |
86.50 |
|
Top Compression Ring Thickness (4070) |
0.0480 |
|
Second Compression Ring Thickness (4071) |
0.0600 |
|
Oil Ring Thickness (4072) |
0.119 |
|
Forging Type |
Round |
|
Volume (cc) |
0.00 |
|
Series |
JE Pistons |
|
Piston Head Type |
Dome |
|
Pin Diameter (IN) |
0.827 |
|
Compression Height |
1.185 |
|
Make |
NISSAN |
|
Wrist Pin Style - floating or press fit |
Floating |
|
Wall Type |
CHAMFERED |
|
Wall Thickness (IN) |
0.150 |
|
Ringset Part Number |
JC2104-3406 |
|
Ring Brand |
ProSeal |
|
Ringset Included |
Yes |
|
Retainer Thickness |
0.063 |
|
Retainer Lock Style |
Wire Lock |
|
Retainer Lock Part Number |
827-063-MW |
|
Retainer Diameter (IN) |
0.827 |
|
Replacement Single Piston |
209849S |
|
Piston Pin Inside Diameter |
0.527 |
|
Piston Pin Material |
5115 LOW CARBON STEEL, CASE HARDENED |
|
Piston Material |
2618 |
|
Piston Pin Length (IN) |
2.250 |
|
Piston Avg Wt |
355 |
|
Pin Offset |
No |
|
Pin Brand |
JE Pistons |
|
Pin Part Number |
827-2250-15-51C |
|
Pin Included |
Yes |
|
Pin Diameter (mm) |
21.00 |
|
Oil Rail Support Included |
No |
|
Deck Clearance |
0.000 |
|
Brand |
JE Pistons |
| SKU | 205-253 |
| Brand | JE Pistons |
| Shipping Weight | 4.0100kg | MPN: | 209849 |
