JE Piston Kit suit RB26DETT with 87mm Bore.
- Rings Included
- 8.5 Compression Ratio with 0.048" Thickness Head Gasket
Specs:
| Bore (in) | 3.43 |
| Bore (mm) | 87.00 |
| Top Compression Ring Thickness (4070) | 0.0480 |
| Second Compression Ring Thickness (4071) | 0.0600 |
| Oil Ring Thickness (4072) | 0.119 |
| Forging Type | Round |
| Volume (cc) | 0.00 |
| Series | JE Pistons |
| Piston Head Type | Dome |
| Pin Diameter (IN) | 0.827 |
| Compression Height | 1.185 |
| Make | NISSAN |
| Wrist Pin Style - floating or press fit | Floating |
| Wall Type | CHAMFERED |
| Wall Thickness (IN) | 0.150 |
| Ringset Part Number | JC2104-3425 |
| Ring Brand | ProSeal |
| Ringset Included | Yes |
| Retainer Thickness | 0.063 |
| Retainer Lock Style | Wire Lock |
| Retainer Lock Part Number | 827-063-MW |
| Retainer Diameter (IN) | 0.827 |
| Replacement Single Piston | 209855S |
| Piston Pin Inside Diameter | 0.527 |
| Piston Pin Material | 5115 LOW CARBON STEEL, CASE HARDENED |
| Piston Material | 2618 |
| Piston Pin Length (IN) | 2.250 |
| Piston Avg Wt | 360 |
| Pin Offset | No |
| Pin Brand | JE Pistons |
| Pin Part Number | 827-2250-15-51C |
| Pin Included | Yes |
| Pin Diameter (mm) | 21.00 |
| Oil Rail Support Included | No |
| Deck Clearance | 0.000 |
| Brand | JE Pistons |

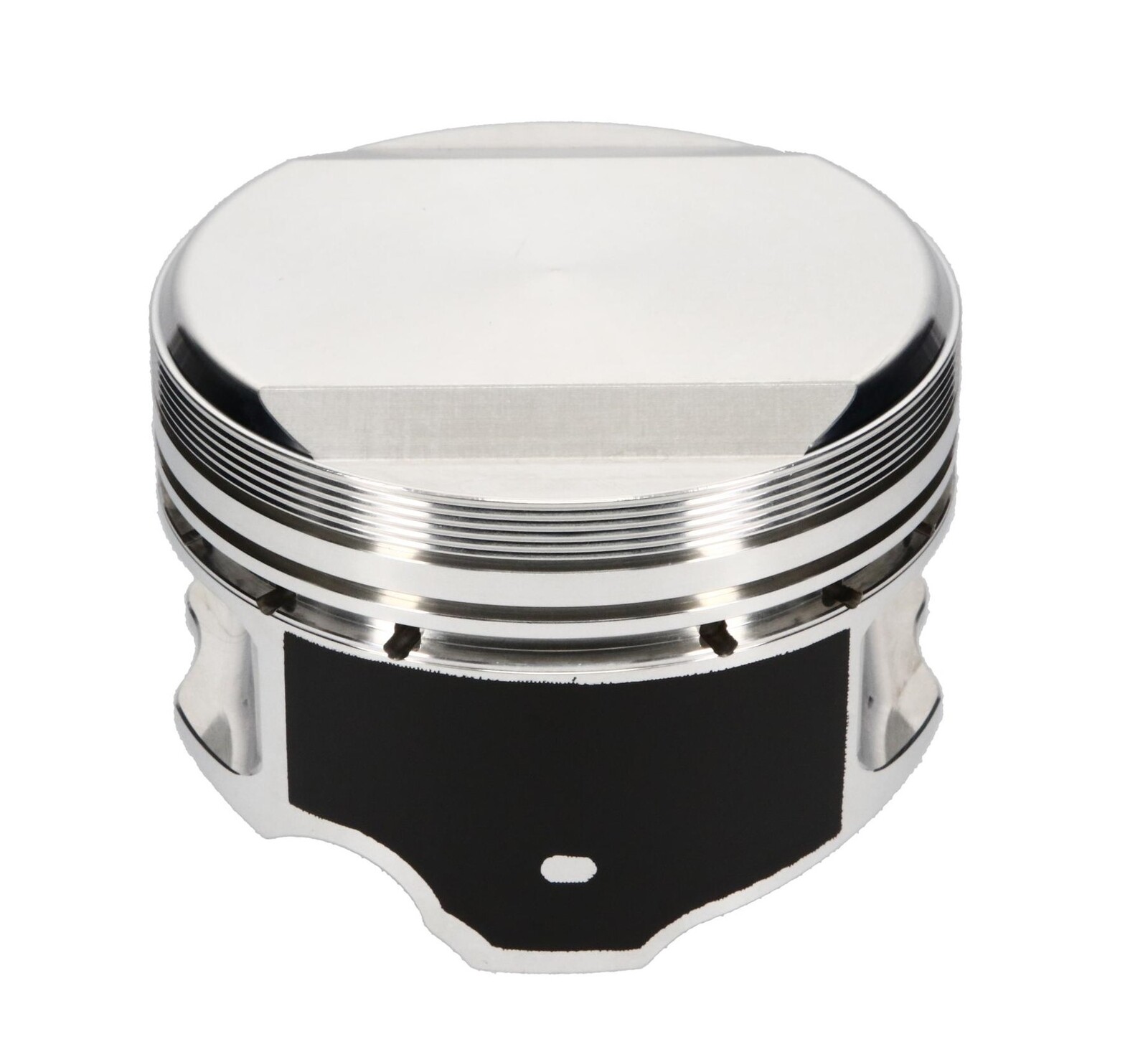

JE Forged Piston Kit RB26DETT 87mm Bore
SKU: 205-254
BRAND: JE Pistons
JE Piston Kit suit RB26DETT with 87mm Bore.
- Rings Included
- 8.5 Compression Ratio with 0.048" Thickness Head Gasket
Specs:
| Bore (in) | 3.43 |
| Bore (mm) | 87.00 |
| Top Compression Ring Thickness (4070) | 0.0480 |
| Second Compression Ring Thickness (4071) | 0.0600 |
| Oil Ring Thickness (4072) | 0.119 |
| Forging Type | Round |
| Volume (cc) | 0.00 |
| Series | JE Pistons |
| Piston Head Type | Dome |
| Pin Diameter (IN) | 0.827 |
| Compression Height | 1.185 |
| Make | NISSAN |
| Wrist Pin Style - floating or press fit | Floating |
| Wall Type | CHAMFERED |
| Wall Thickness (IN) | 0.150 |
| Ringset Part Number | JC2104-3425 |
| Ring Brand | ProSeal |
| Ringset Included | Yes |
| Retainer Thickness | 0.063 |
| Retainer Lock Style | Wire Lock |
| Retainer Lock Part Number | 827-063-MW |
| Retainer Diameter (IN) | 0.827 |
| Replacement Single Piston | 209855S |
| Piston Pin Inside Diameter | 0.527 |
| Piston Pin Material | 5115 LOW CARBON STEEL, CASE HARDENED |
| Piston Material | 2618 |
| Piston Pin Length (IN) | 2.250 |
| Piston Avg Wt | 360 |
| Pin Offset | No |
| Pin Brand | JE Pistons |
| Pin Part Number | 827-2250-15-51C |
| Pin Included | Yes |
| Pin Diameter (mm) | 21.00 |
| Oil Rail Support Included | No |
| Deck Clearance | 0.000 |
| Brand | JE Pistons |
| SKU | 205-254 |
| Brand | JE Pistons |
| Shipping Weight | 4.0100kg | MPN: | 209855 |
