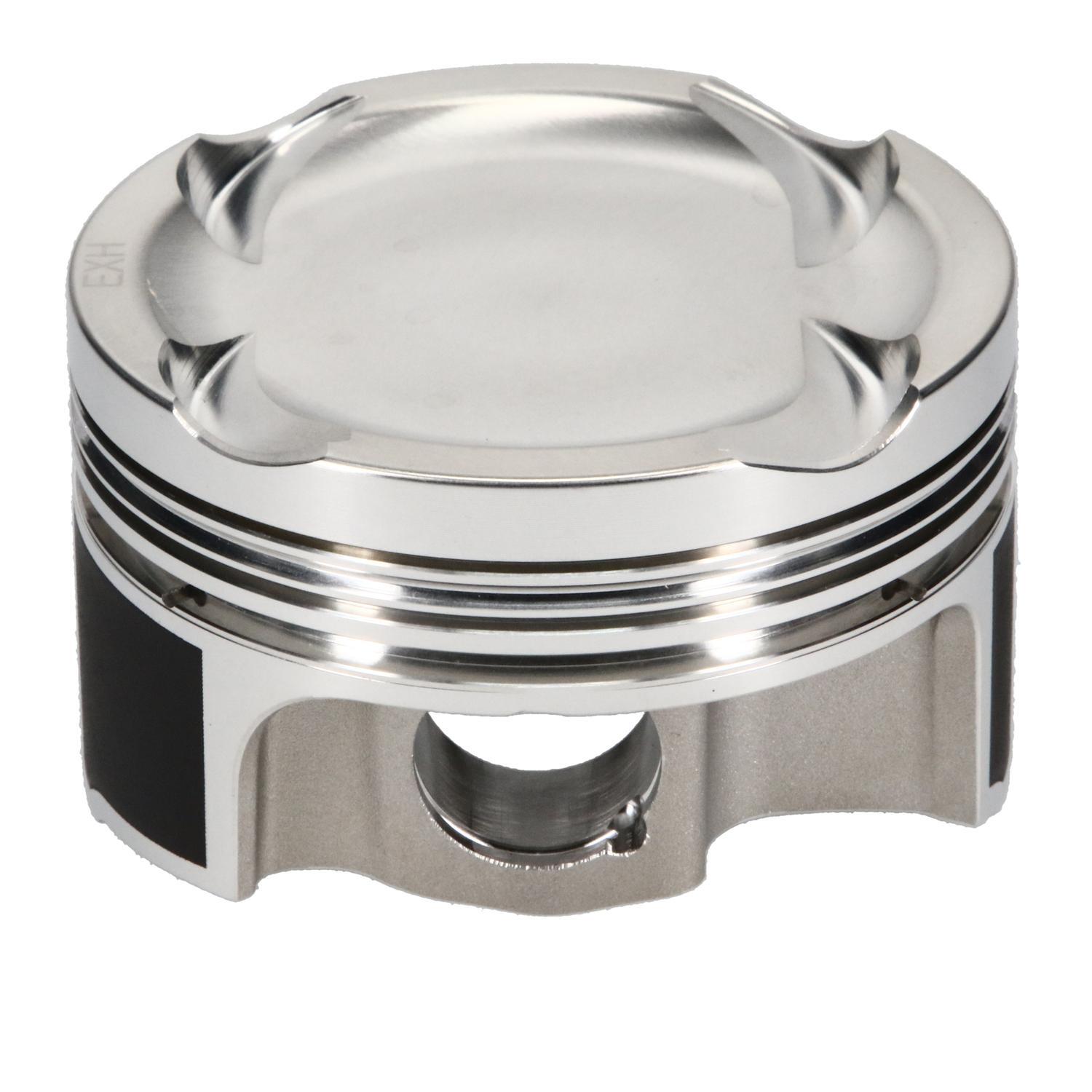

JE Piston Kit suit SR20DET with 87mm Bore.
- Rings Included
- 8.5 Compression Ratio with 0.040" Thickness Head Gasket
Specs:
|
More Information |
|
|
Bore (in) |
3.43 |
|
Bore (mm) |
87.00 |
|
Top Compression Ring Thickness (4070) |
0.0400 |
|
Second Compression Ring Thickness (4071) |
0.0480 |
|
Oil Ring Thickness (4072) |
0.111 |
|
Forging Type |
FSR |
|
Volume (cc) |
-14.30 |
|
Series |
JE Pistons |
|
Piston Head Type |
Inv Dome/Dish |
|
Pin Diameter (IN) |
0.866 |
|
Compression Height |
1.253 |
|
Make |
NISSAN |
|
Wrist Pin Style - floating or press fit |
Floating |
|
Wall Type |
CHAMFERED |
|
Wall Thickness (IN) |
0.150 |
|
Ringset Part Number |
JG1001-3425 |
|
Ring Brand |
ProSeal |
|
Ringset Included |
Yes |
|
Retainer Thickness |
0.063 |
|
Retainer Lock Style |
Wire Lock |
|
Retainer Lock Part Number |
866-063-MW |
|
Retainer Diameter (IN) |
0.866 |
|
Replacement Single Piston |
298729S |
|
Replaced By |
245016 |
|
Piston Pin Inside Diameter |
0.566 |
|
Piston Pin Material |
5115 LOW CARBON STEEL, CASE HARDENED |
|
Piston Material |
2618 |
|
Piston Pin Length (IN) |
2.250 |
|
Piston Avg Wt |
316 |
|
Pin Offset |
Yes |
|
Pin Brand |
JE Pistons |
|
Pin Part Number |
866-2250-15-51C |
|
Pin Included |
Yes |
|
Pin Diameter (mm) |
22.00 |
|
Oil Rail Support Included |
No |
|
Deck Clearance |
-0.005 |
|
Brand |
JE Pistons |
JE Forged Piston Kit SR20DET 87mm Bore
SKU: 205-250
BRAND: JE Pistons
AU$1,378.99
Incl. GST
1 In Stock
JE Forged Piston Kit SR20DET 87mm Bore
AU$1,378.99
Incl. GST
1 In
Stock
JE Piston Kit suit SR20DET with 87mm Bore.
- Rings Included
- 8.5 Compression Ratio with 0.040" Thickness Head Gasket
Specs:
|
More Information |
|
|
Bore (in) |
3.43 |
|
Bore (mm) |
87.00 |
|
Top Compression Ring Thickness (4070) |
0.0400 |
|
Second Compression Ring Thickness (4071) |
0.0480 |
|
Oil Ring Thickness (4072) |
0.111 |
|
Forging Type |
FSR |
|
Volume (cc) |
-14.30 |
|
Series |
JE Pistons |
|
Piston Head Type |
Inv Dome/Dish |
|
Pin Diameter (IN) |
0.866 |
|
Compression Height |
1.253 |
|
Make |
NISSAN |
|
Wrist Pin Style - floating or press fit |
Floating |
|
Wall Type |
CHAMFERED |
|
Wall Thickness (IN) |
0.150 |
|
Ringset Part Number |
JG1001-3425 |
|
Ring Brand |
ProSeal |
|
Ringset Included |
Yes |
|
Retainer Thickness |
0.063 |
|
Retainer Lock Style |
Wire Lock |
|
Retainer Lock Part Number |
866-063-MW |
|
Retainer Diameter (IN) |
0.866 |
|
Replacement Single Piston |
298729S |
|
Replaced By |
245016 |
|
Piston Pin Inside Diameter |
0.566 |
|
Piston Pin Material |
5115 LOW CARBON STEEL, CASE HARDENED |
|
Piston Material |
2618 |
|
Piston Pin Length (IN) |
2.250 |
|
Piston Avg Wt |
316 |
|
Pin Offset |
Yes |
|
Pin Brand |
JE Pistons |
|
Pin Part Number |
866-2250-15-51C |
|
Pin Included |
Yes |
|
Pin Diameter (mm) |
22.00 |
|
Oil Rail Support Included |
No |
|
Deck Clearance |
-0.005 |
|
Brand |
JE Pistons |
| SKU | 205-250 |
| Brand | JE Pistons |
| Shipping Weight | 2.0700kg | MPN: | 298729 |
