Our low profile single solenoid block for the P12 SR20VE heads is used when the space behind the head to the firewall is limited. At only 34.3mm thick it is the lowest profile solenoid block available.

This is used in a RWD VE head swap when additional engine to firewall clearance is needed. Our block has been designed to be super low profile to allow maximum clearance to the firewall.

These use standard type o-rings that are easily found at most bearing and seal shops if they ever need replacing.

These also use easy to find standard ORB fittings, easy to replace in the event one gets damaged.

Larger oil line size to match the head the way Nissan intended.

Laser etched with oil flow direction.

CNC Machined from 6061-T6 Billet aluminum.

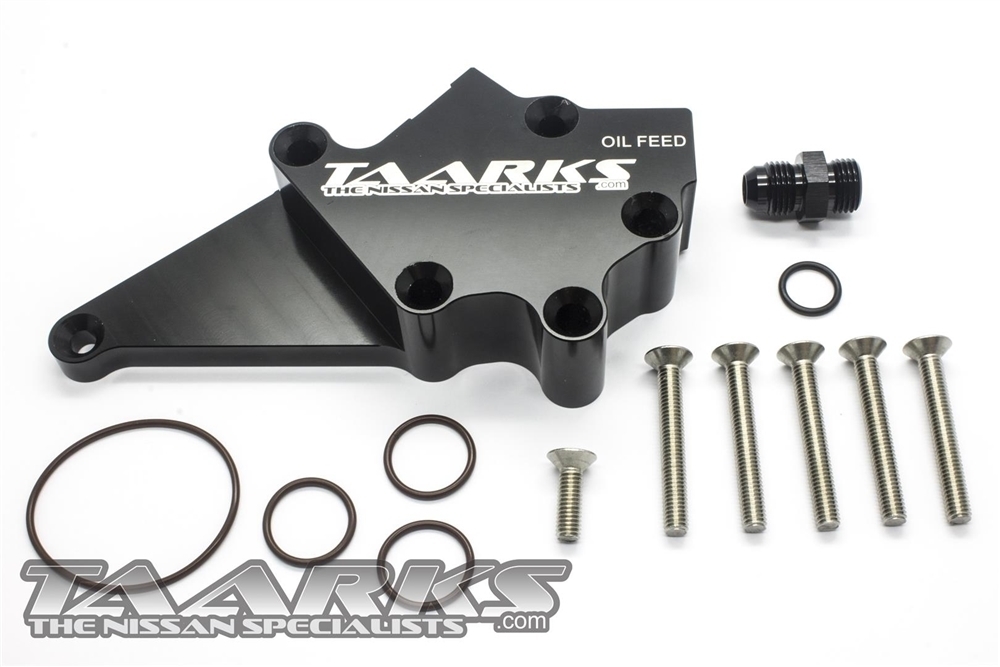

The kit includes:
1x Solenoid Block
1x AN6 ORB Fitting
4x Viton O-rings
6x Stainless Steel Allan Key Bolts

We can also supply a pre-made oil like to run from our TAARKS oil filter adapter block to the solenoid block. Made with quality teflon black nylon braid hose and black full flow fittings.

*Solenoid is NOT included, but will work with the following solenoids:
P11 SR20ve Solenoids (both)
N15 SR16e Solenoids (both)
T30 SR20vet Solenoid
P12 SR20ve Solenoid
S14 VCT SR20 Solenoid
S15 VCT SR20 Solenoid

Want a new solenoid? Grab one HERE

Application:
P12 SR20ve Heads
