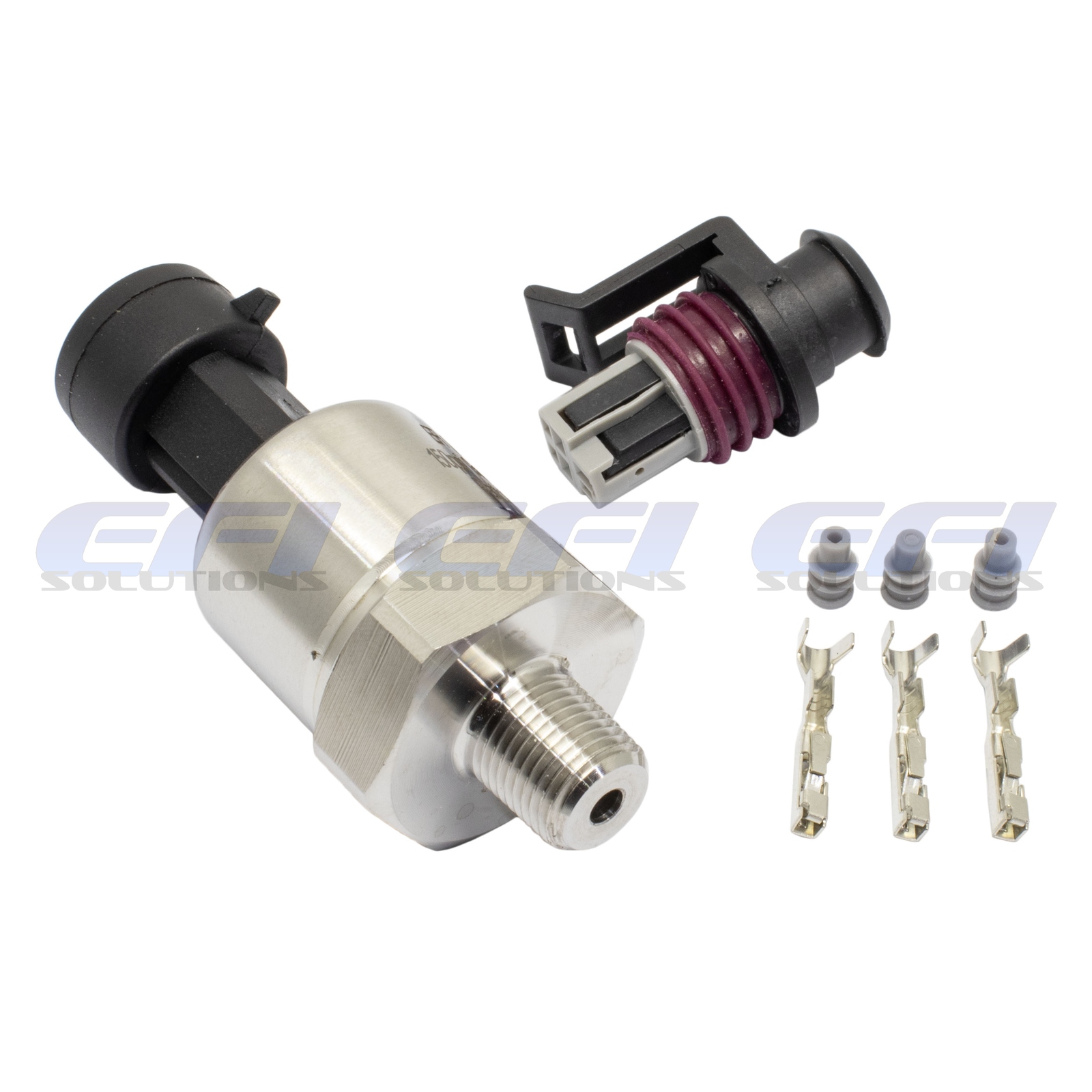

These universal high quality sending units feature an all stainless steel design (including diaphragm) and are designed to be used in a wide variety of situations where accurate pressure measurement are required.

Great for NOS pressure, Brake pressure, Power steering pressure.

Features include:

• 0 to 160 BAR positive pressure window
• Stainless 316L body and diaphragm
• 1/8 NPT thread
• 24mm Hex
• No internal rubber O-rings
• Includes a Delphi 3 pin connector
• 0.5 to 4.5 V Linear output
• Laser welded
• Compatible all pump fuels, methanol, E85, Ethanol, oil, hydraulic fluids, water, coolant, etc

​​Note: Remote mounting of these sensors is recommended as direct engine vibration will cause premature failure and void the warranty. This means the sensor cannot be mounted to anything that is directly attached to the engine (fuel rails, oil block adapters, etc). They can be mounted on oil filter relocators, fuel pressure regulators, etc. when isolated from the engine by hoses.
