These universal high quality sending units feature an all stainless steel design (including diaphragm) and are designed to be used in a wide variety of situations where accurate pressure measurement are required. Perfect for screwing straight into AN6 ORB fuel pressure regulators ( Turbosmart AN6), fuel rails etc.
Great for fuel pressure, oil pressure, manifold pressure, etc
**Connector is included.
Features include:
- 0 to 150 Psi positive pressure window
- Stainless 316L body and diaphragm
- Male AN6 ORB Thread
- 24mm Hex
- No internal rubber O-rings
- Includes a Delphi 3 pin connector
- 0.5 to 4.5 V Linear output
- Laser welded
- Compatible all pump fuels, methanol, E85, Ethanol, oil, hydraulic fluids, water, coolant, etc
Note: Remote mounting of these sensors is recommended as direct engine vibration will cause premature failure and void the warranty. This means the sensor cannot be mounted to anything that is directly attached to the engine (fuel rails, oil block adapters, etc). They can be mounted on oil filter relocators, fuel pressure regulators, etc. when isolated from the engine by hoses.

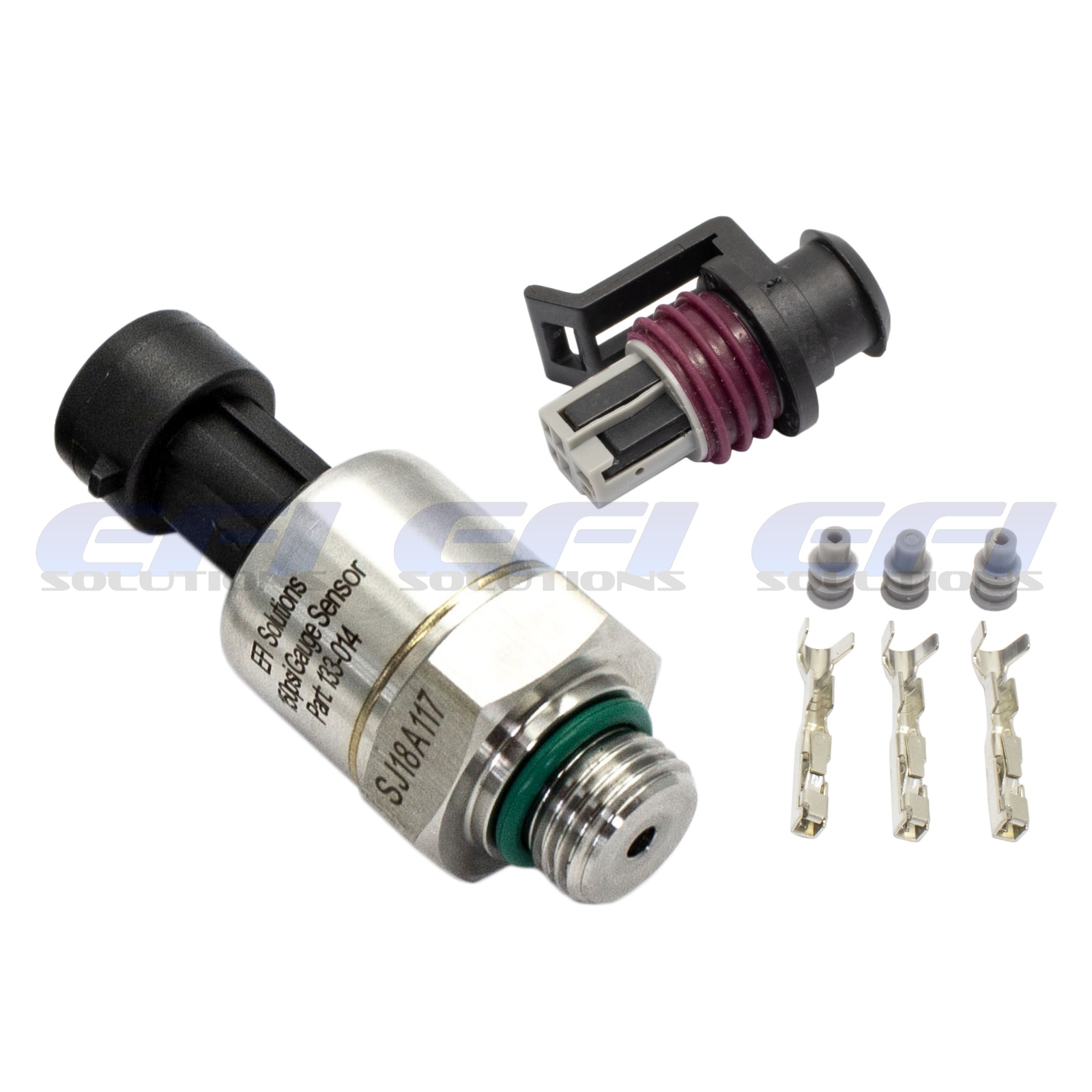

Stainless Steel Pressure Sensor 150Psi AN6 ORB Thread (0 to 150 Psi) with Connector
SKU: 133-015
BRAND: EFI Solutions
These universal high quality sending units feature an all stainless steel design (including diaphragm) and are designed to be used in a wide variety of situations where accurate pressure measurement are required. Perfect for screwing straight into AN6 ORB fuel pressure regulators ( Turbosmart AN6), fuel rails etc.
Great for fuel pressure, oil pressure, manifold pressure, etc
**Connector is included.
Features include:
- 0 to 150 Psi positive pressure window
- Stainless 316L body and diaphragm
- Male AN6 ORB Thread
- 24mm Hex
- No internal rubber O-rings
- Includes a Delphi 3 pin connector
- 0.5 to 4.5 V Linear output
- Laser welded
- Compatible all pump fuels, methanol, E85, Ethanol, oil, hydraulic fluids, water, coolant, etc
Note: Remote mounting of these sensors is recommended as direct engine vibration will cause premature failure and void the warranty. This means the sensor cannot be mounted to anything that is directly attached to the engine (fuel rails, oil block adapters, etc). They can be mounted on oil filter relocators, fuel pressure regulators, etc. when isolated from the engine by hoses.
| SKU | 133-015 |
| Brand | EFI Solutions |
| Shipping Weight | 0.0900kg | MPN: | SS208 9/16UNF A03A06 |
