***Beware of the Current (AMPS) draw of these pumps. Some standard fuel bulkhead pins cannot take the load and will burn out***
Refer to your Auto Electrician for correct installation.

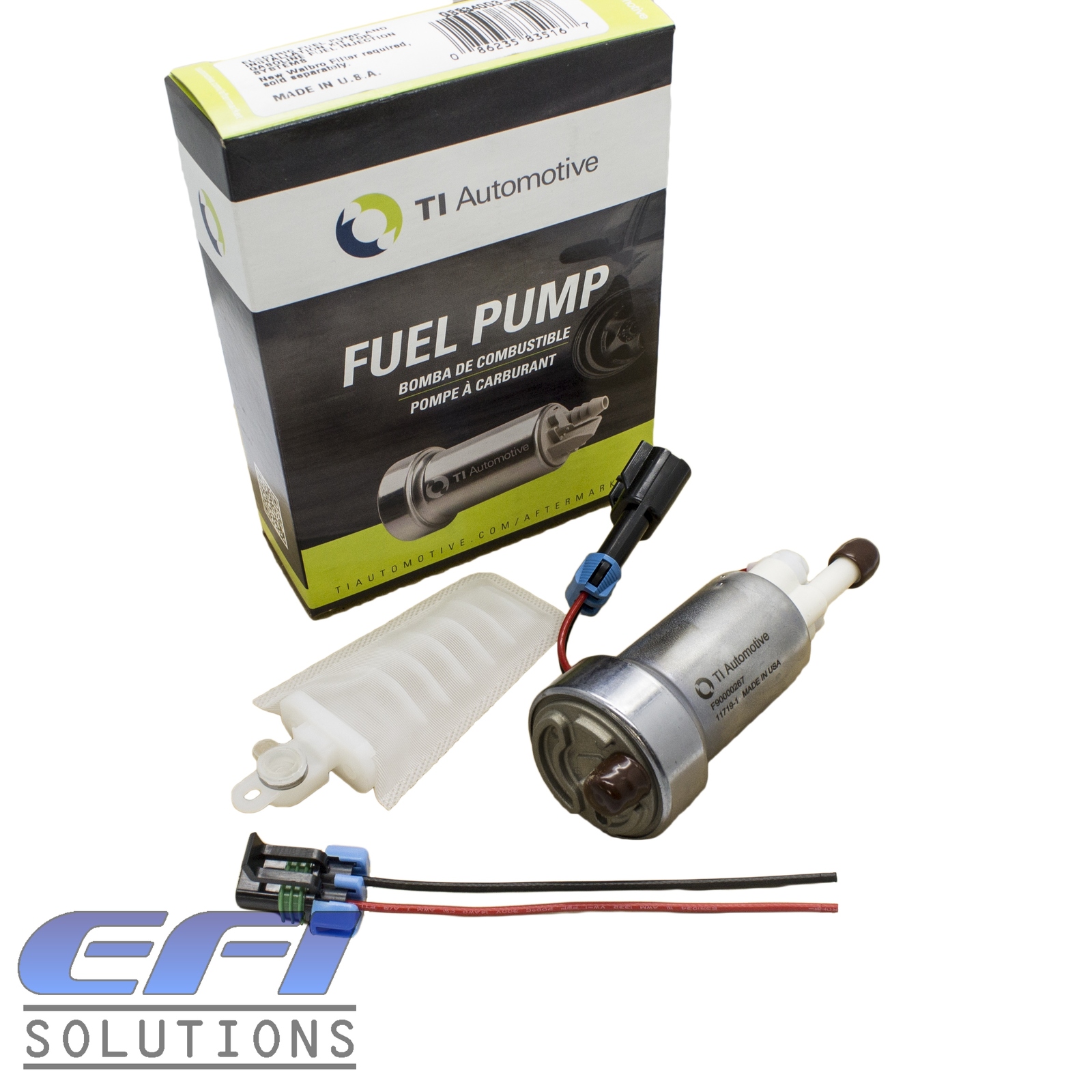

Kit includes:
1x Genuine Walbro 525 Pump
1x Electrical Connector

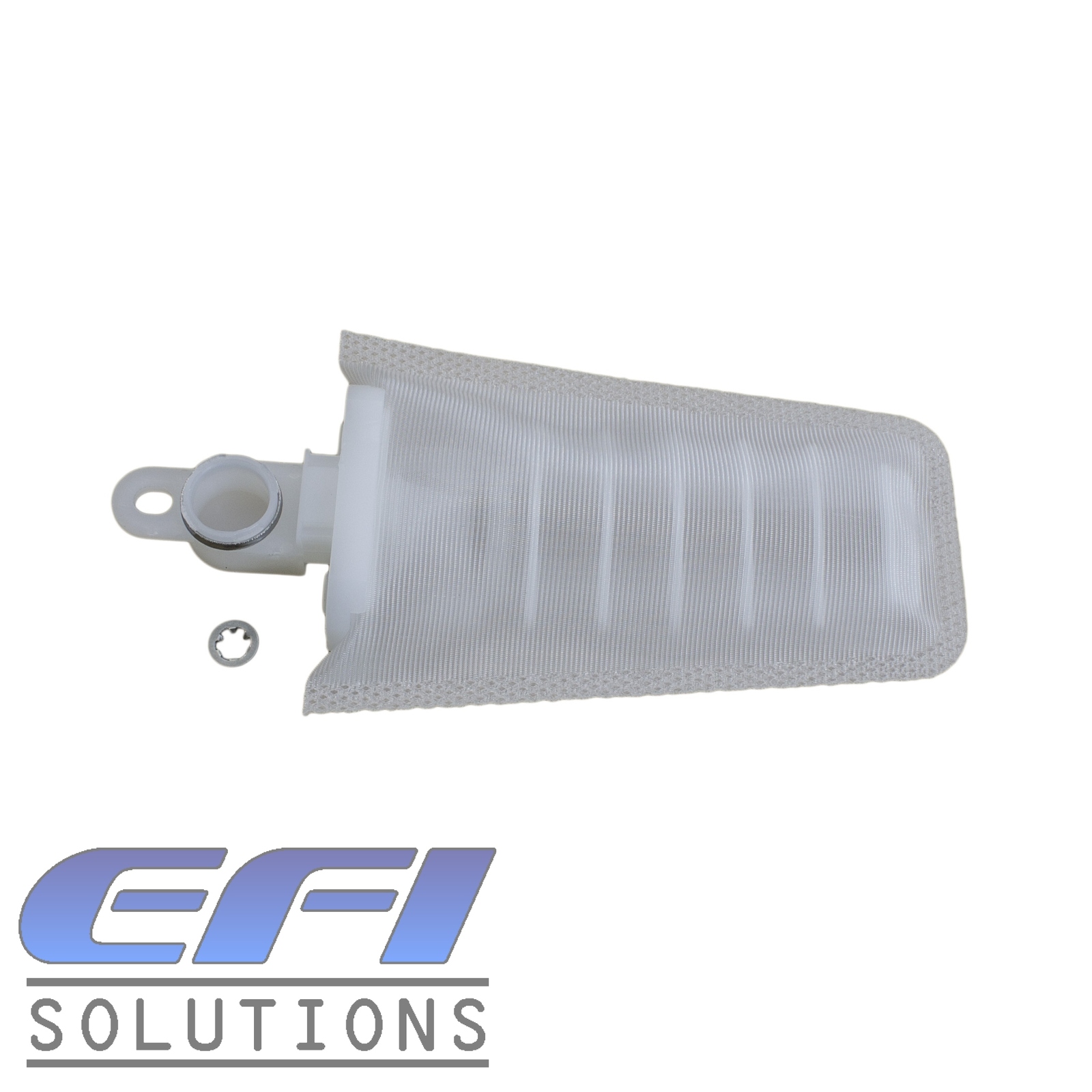

1x Universal Strainer
1x Walbro Box

Fuel: GAS & E85
Horsepower: 900+ at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD

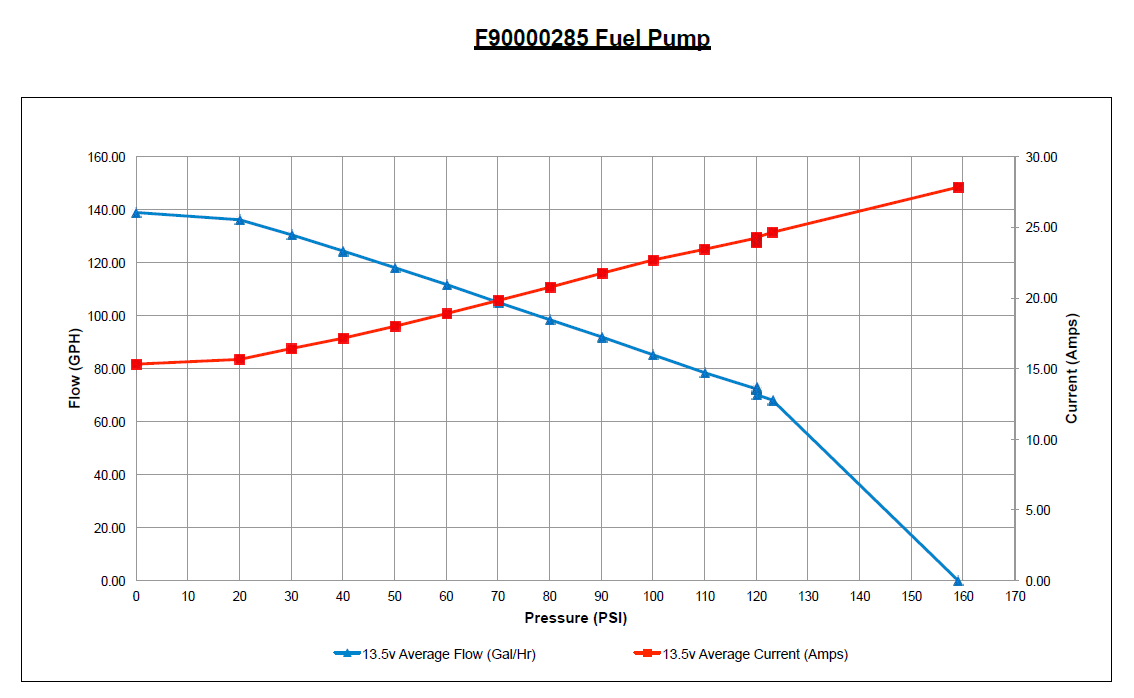

Flow Rate: 470lph @ 40psi (120+ gph)
Test Voltage: 13.5 Volts

​F90000285

SKU 113-019
Brand Walbro
Shipping Weight 0.6600kg
MPN: F90000285

Awesome Fuel Pump

14 December 2022
Had the walbro 460lph pump on my old setup and upgraded to dual 525’s. Wouldn’t look back, fuel supply is awesome now! Affordable and reliable fuel pump
