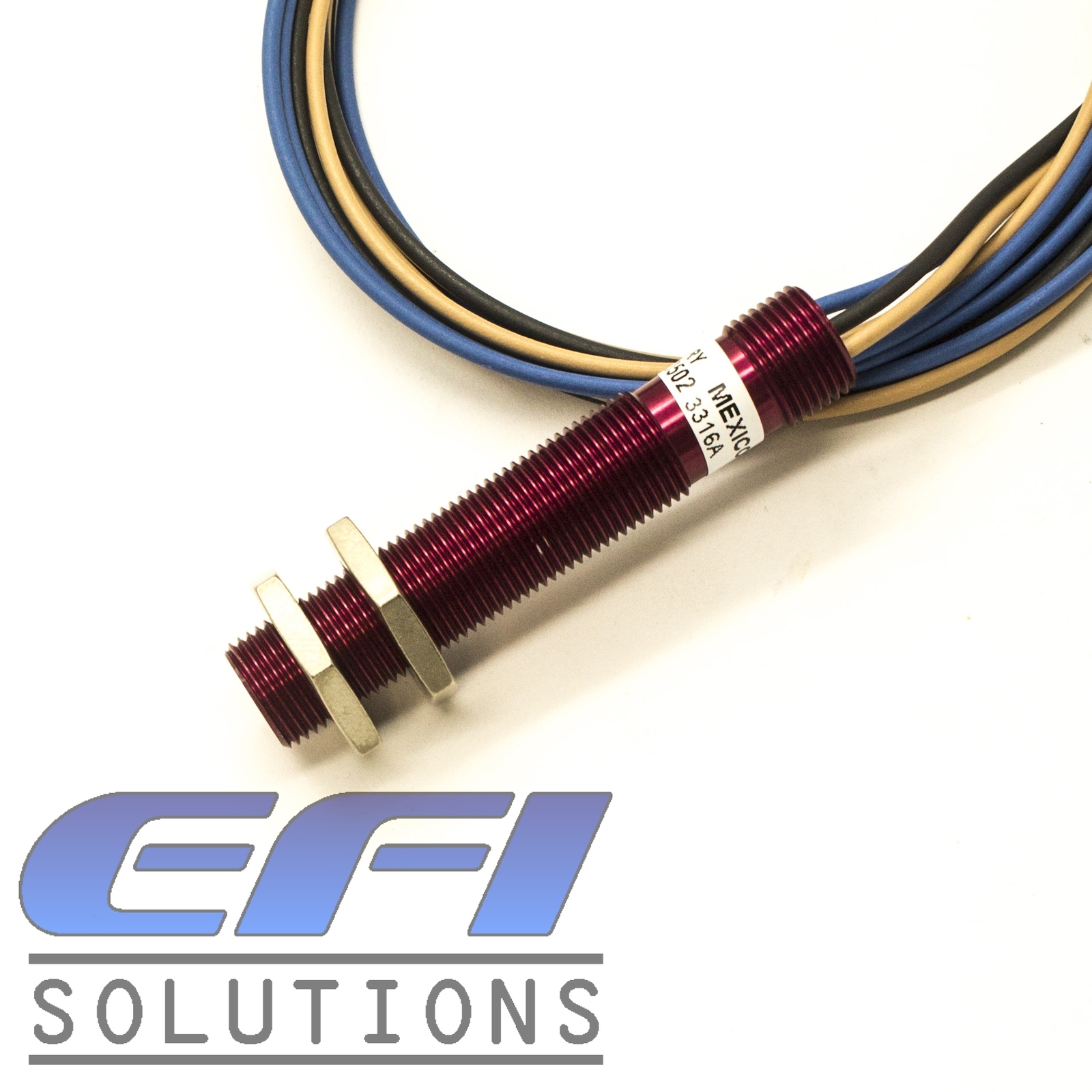

Genuine ZF / Cherry Red hall sensor.
Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output.
Great for use with crank triggers and cam signals.
2x Locking nuts included.
The PDF Datasheet Can Be Found Above
Info:
Thread = M12x1.0
Lead Length = 1m (20 AWG)
Voltage = 5v - 24v
Max Current Draw = 6 mA
Maximum Speed Detection = 15 kHz
Features:
From near zero speed up to 15 kHz sensing capability
10 bit dynamic threshold direction offers:
Automatically adjusting magnetic range
Self-compensating to target geometry
Compatible with unregulated power supply
ROHS compliant
IP67
Typical air gap of 1.5 mm*
Aluminum Body
Typical Applications:
Engine Speed
Speedometers
Anti-lock braking systems
Exercise equipment
CNC machine tools
ZF / Cherry Hall Sensor (Red) "M12"
SKU: 104-020
BRAND: ZF / Cherry
Rated 5/5 based on 1 review.
AU$88.00
Incl. GST
10+ In Stock
ZF / Cherry Hall Sensor (Red) "M12"
AU$88.00
Incl. GST
10+ In
Stock
Genuine ZF / Cherry Red hall sensor.
Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output.
Great for use with crank triggers and cam signals.
2x Locking nuts included.
The PDF Datasheet Can Be Found Above
Info:
Thread = M12x1.0
Lead Length = 1m (20 AWG)
Voltage = 5v - 24v
Max Current Draw = 6 mA
Maximum Speed Detection = 15 kHz
Features:
From near zero speed up to 15 kHz sensing capability
10 bit dynamic threshold direction offers:
Automatically adjusting magnetic range
Self-compensating to target geometry
Compatible with unregulated power supply
ROHS compliant
IP67
Typical air gap of 1.5 mm*
Aluminum Body
Typical Applications:
Engine Speed
Speedometers
Anti-lock braking systems
Exercise equipment
CNC machine tools
| SKU | 104-020 |
| Brand | ZF / Cherry |
| Shipping Weight | 0.0700kg | MPN: | GS100502 |
ZF “cherry” sensor
By: John on 10 June 2021Great product
